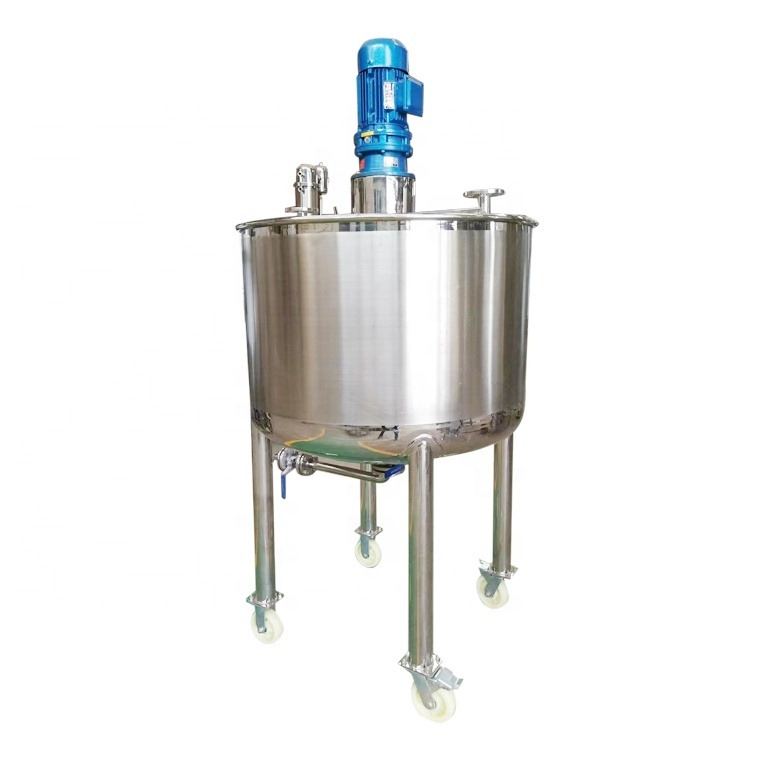

Factory Food Grade Stainless Steel Mixer Vessel Drum Mixer Mixing Tank

1 Set
MOQ
$1,400.00(>=1 Sets)
τιμή
Factory Food Grade Stainless Steel Mixer Vessel Drum Mixer Mixing Tank
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Mixer Type: Agitator
Barrel Volume (L): 50-10000
Material Processed: Plastics, Chemicals, Food, Medicine
Max. Loading Volume (L): 20000 L
Weight (KG): 200 KG
Condition: New
Voltage: 120-480V
Dimension(L*W*H): Custom Made
Power (kW): 1.5 kW
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops
Showroom Location: None
Marketing Type: Hot Product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pump
After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Πιστοποίηση: CE
Βασικές πληροφορίες
Πιστοποίηση: CE
Πληρωμής & Αποστολής Όροι
Packaging Details: Export carton
Supply Ability: 200 Set/Sets per Month
Περιγραφή προϊόντων
Product Description

Mixing tank introduction

Common application:food, pharmaceutical, chemical industry materials mixing, ingredients, dilution, blending, fermentation, aging.
Often used in production: purified water, alcohol, wine, juice, milk, detergent, sauce and so on.
Normal Specification
Model
Motor Power
Material
Tank structure
Inner cylinder
common size
Conventional nozzle
100L
0.55KW
304/316L
Single/multi-layer
Ø500*h500*t3



Outlet, jacket inlet, jacket outlet, safety valve outlet, pressure gauge outlet Conventional quotation does not include pump,pipe, valve, instrument and other accessories.
200L
0.75KW
304/316L
Single/multi-layer
Ø600*h600*t3
300L
0.75KW
304/316L
Single/multi-layer
Ø750*h600*t3
500L
1.5KW
304/316L
Single/multi-layer
Ø900*h750*t3
1000L
2.2KW
304/316L
Single/multi-layer
Ø1000*h1200*t3
2000L
4.0KW
304/316L
Single/multi-layer
Ø1250*h1500*t3
3000L
5.5KW
304/316L
Single/multi-layer
Ø1500*h1500*t3
5000L
7.5KW
304/316L
Single/multi-layer
Ø1800*h1800*t4
10000L
11KW
304/316L
Single/multi-layer
Ø2000*h3000*t4
How to customized your product? Pls inform us the specification as below:
Capacity
such as 600L,800L etc..
Placement structure
Vertical, hanging, etc
Material
SS304,SS316L,etc..
Parameter of electric machine
including voltage frequency phase number (e.g. AC380V/50HZ/3PH), power (e.g .0.55 KW), rotational speed (e.g .36 RPM),explosion-proof (depending on whether the material has explosive components), frequency conversion motor (depending on whether speed regulation is required), etc
Agitator form
Blade type, frame type, scraper type, three-leaf propulsion type, screw belt type, etc.
Size
For example, specify not more than height, or specify not more than diameter, or specify length and width, etc..
Pressure
Normal pressure, positive pressure (e.g. pressure), negative pressure (machine commonly known as vacuum, such as -0.095 Mpa), etc
Pipe nozzle
Additional openings other than conventional ones, such as safety valve, pressure gauge, temperature, electronic level gauge, etc
Accessories
Valves, level gauges, air filter filters, thermometers, pressure gauges, discharge pumps, vacuum pumps, frequency converters, etc
If you don't know the requirements, you can provide your material name and characteristics, we calculate and design according to the experience of previous customers.
CONTACT US
Whatsapp/Mob: +86 18936889762; Email: gaoyuu@njbangwin.com
Production Equipment
Project Cases
Our Factory
Production Process
FAQ
1.Q:Are you trade or manufacturer ?
A : We are a factory with an international sales company specialized in support for global distributors.

2.Q:How long is the service time?
A:It could use several year without external force factors.We have 1 year warranty.

3.Q:What is the payment terms?
A:We accept T/T and L/C,also can use alibaba trade assurance.

4.Q:How to choose the shipment way?
A:It is according to the order quantity,delivery time,costs and customs policy,etc.(Or decide by customers).

5.Q:How about the surface finishing?
A:Machine finished,matt and mirror polished,it will be confirmed by customer’s requirement.
