Χαρακτηριστικά

Προδιαγραφές

Processing: Fermenting Equipment

Applicable Industries: Hotels, Food & Beverage Factory, Food Shop, Food & Beverage Shops

Showroom Location: None

Condition: New

Processing Types: Alcohol

Voltage: Request

Power: 0-80KW

Dimension(L*W*H): Depends

Weight: 200KG-2000KG

Warranty: 3 Years

Machinery Capacity: 2000L

Machinery Test Report: Provided

Warranty of core components: 5 years

Core Components: Pressure vessel

Key Selling Points: Easy to Operate

Marketing Type: New Product 2020

Video outgoing-inspection: Provided

After-sales Service Provided: Engineers available to service machinery overseas

Material: Stainless Steel 304

heating source: electric, stream or direct fired gas

welding: Argon Arc Welding

polishing: 0.4 micron

insulation: polyurethane/rockwool 100mm

fermenting cooling: glycol cooling jacket

controlling: auto temperature, pressre, motor control

Function: beer brewery equipment

Product Name: steam brewing equipment

After Warranty Service: Video technical support, Online support, Spare parts

Local ServiceÂ Location: None

Πιστοποίηση: CE ISO PED

Βασικές πληροφορίες

Πιστοποίηση: CE ISO PED

Πληρωμής & Αποστολής Όροι

Packaging Details: Beer brewery equipment like beer fermenters adopt standard Exporting Package suitable for long time marine transport

Supply Ability: 10 Set/Sets per Year

Περιγραφή προϊόντων

2000L stainless steel steam heating jacketed mixing tank with agitator micro brewing equipment

1. General configuration and specifications of our beer brewery system:

*No.*	*Item*		Qty	*Remark*
Unit I--Brewhouse unit (Electric/steam or diect gas heating)
1	Malt milling		1	Double roller, alloy roller, roller distance adjustable
2	Mash & Lauter Tank		1	1)-inner wall stainless steel 304, 3mm; -surface wall stainless steel 304 2mm, copper, 1.5mm 2) Dome top, top manway with glass,Side manway, cone bottom 160 degree 3) -insulation: polyurethane/rockwool 100mm; -with inside CIP washing ball -raking agitator -removable false bottom -sparging arm, sight glass -Tangential inlet for whirlpool - Thermowell for temperature sensor and thermometer
3	Brew kettle & Whirlpool		1
4	Hot water tank		1	-Dome top and cone bottom; bottom cone 160 degree -Interior Shell:SUS304,thickness: 3.0mm -Exterior Shell:SUS304,thickness: 2.0mm -Insulation:Polyurethane-thickness:100mm -100% TIG welding with pure argon gas shield -Interior Finish: Overall polishing to 0.4~0.6μm without dead corner -Top mounted manway with glass
5	Wort Pump		1	-Food grade centrifugal pump with VFD, DANFOSS -Wort pump with open impeller
6	Plate Heat Exchanger		1	-Two stages for glycol water and cool water -SUS 304 Plates and frame
7	Working platform		1	-Complete SUS304 configuration -Anti-slip metal floor
*Unit II--Fermentation*
1	Fermenter	6-12		1) - Inner wall stainless steel 304, 3mm; -surface wall stainless steel 304, 2mm 2) Dome top, conical bottom,Top manway/side manway 3) Insulation: polyurethane/glass rockwool 100mm 4) Dimple plate Glycol cooling jackets on both cylinder and cone 5) - Inside 360 degree rotating CIP washing ball; -CIP arm -Pressure gauge -safety&vacuum valve on top -sample valve -rotating racking arm -thermometer -carbonation stone (optional) -dry hops port (optional) 6) Testing pressure: 3 bar working pressure: 1.5-2 bar
2	Bright beer tanks
3	Yeast Tank	1		-SUS 304 material -Inlet on bottom -Outlet on top -With cone bottom
**Unit III--Cooling System**
1	Glycol Water Tank	1		1.Insulated glycol water tank with copper coil 2.High efficiency chillers or refrigerators with fryon to supply cooling energy 3.Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger 4.All pipes, fitting, insulation materials are included
2	Chiller			scorll type compressor
3	Glycol Water Pump			Stainless steel
*Unit IV--CIP Station*
1	CIP unit	1		-CIP Washing Tank -Sterilization Tank -Pump and Valve
*Unit V--Controlling*
1	Control Cabinet	1			Stainless steel
					With power control
2	Touch Screen	1			-Mashing pump speed controlling by VFD,DANFOSS -Mashing tun agitator speed controlling by by -VFD,DANFOSS -Fermentation temperature setting /pressure controlling -Glycol temperature setting -Chiller working /stopping controlling

Note: Brewhouse system had different combinations according to different requirements, like,
mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank
Optional:

1-mash/brew kettle, lauter tun/whirlpool
2-mash tun, lauter tun, brew kettle/whirlpool
3-mash tun, lauter tun, brew kettle, whirlpool

2.Beer Production Calculations

Daily put	100L	200L	300L	500	1000L	2000L
Floorspace	15square	25square	35square	45square	80square	120square
Power	12KW	15KW	20KW	35KW	35/15KW	65/15KW
Time Consuming	8-12 days	8-12 days	8-12 days	8-12 days	8-12 days	8-12 days

3. Beer brewing equipmeng Picture Showing

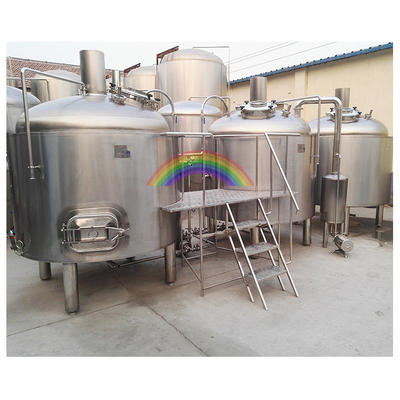

1) Brewhouse Unit

2) Fermentation System--glycol jacket dimple plate beer fermenter

Spare Parts

Pipe line for brewhouse	SUS304
Measuring cylinder	SUS304
Butterfly valve	Ø32
Butterfly valve	Ø38
Sight glass	Ø32
Saccharimeter	0-10; 10-20
Spent grains harrow	SUS 304
Fermenter’s safety valve	ø32
Fermenter’s Sample valve	ø32
Pressure gauge	0-0.6Mpa
Pipe line for cooling unit	SUS 304
Cooling water solenoid valve	ø32
Cooling pipe insulation
Expansion valve for cooling compressor
Control box cable
Signal wire
SIEMENS frequency convertor	V20
Electric relay	Omron
Temperature sensor	PT100

Question:

1. We have capacities of 100 liter to 10,000 liter, which capacity do you prefer?

2. How many tank do you need?

3. Do you need any other part of the brewery, such as mashing system, cip system, steam boiler, cooling system, control system, bottling system, kegging system?

OUR CLIENTS

Germany, Czech Republic, USA, Canada, Russia, Sweden, Paraguay, Singapore, Australia, Finland...

CHARACTERISTICS

1-For all kinds of beer's fermentation(ale and lager)

2-Various capacities: 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L..

3-Thickness of stainless board and PU insulation material can be customized,

our standard material is inner wall 3mm sus304, outer wall 1.5mm sus304, insulation 100mm PU

4-Technical support can be provided by our engineer, if you need, they can come to

your country to help you install the equipment and brew beer.

5-Besides fermenting equipment, we can also provide mash system, cooling system,

CIP system, filter system, control system, bottling filling and capping machine,

keg filling and washing machine, steam boiler...

CONFIGURATION OF OUR COMPLETE BREWERY

Jinan Rainbow Machinery Co., Ltd. is a professional manufacturing company for high quality Beer Brewing Systems, ranging from 100 liter to 10,000 liter per batch, which is used for home, Bar/Pub, Restaurant, Hotel and Small Beer Factory.

Brewhouse System
Fermentation System
Cooling System
CIP System
Control System
Filtration System
Bottle Machines
Keg Machines

If you want a complete brewery, some questions need to be confirmed:

1-We have capacities from 100 liter to 10,000 liter, what capacity do you prefer, 10bbl?

2-What kind of heating source do you like, steam, gas direct fire or electric?

3-Do you need other equipment, such as steam boiler, bottle filling and capping machine,

keg filling and cleaning machine, kegs...?

Packaging & Shipping

1.LCL/FCL(20GP/40GP/40HQ)

2.Beer brewing equipment main tanks packed with soft material or packed in fumigation wooden case and fixed onto iron frame

3.standard exporting packing, suitable for long time marine shipping

4.According to customer's requirements

Dear friends, if you had any further question regarding the beer brewing equipment or any requirements, please feel free to contact us. We will provide you the best solutions as your demands.
