Liquid vaccine factory with mixing tanks

1 unit
MOQ
Liquid vaccine factory with mixing tanks
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Model Number: RTJX
Mixer Type: Planetary Mixer
Max. Loading Capacity: 50000L
Condition: New
Product Type: oral liquid, injection solution, infusion solution, eye drop, etc.
Application: Liquid
Additional Capabilities: temp., level, weight display&record, alarm
Voltage: 380V
Dimension(L*W*H): N/A
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Πιστοποίηση: ASME, PED 97/23/EC, NB, ISO 9001:2008
Power: N/A
Type: liquid medicine production plant
Material: stainless steel
Validation: GMP, cGMP
Documents: DQ, IQ, OQ, PQ, FAT, SAT, Operation Manual, Drawing, etc.
Spare parts: 2 years
Βασικές πληροφορίες
Πιστοποίηση: ASME, PED 97/23/EC, NB, ISO 9001:2008
Model Number: RTJX
Πληρωμής & Αποστολής Όροι
Packaging Details: Export wooden case
Supply Ability: 100 Unit/Units per Month
Περιγραφή προϊόντων

Product Description

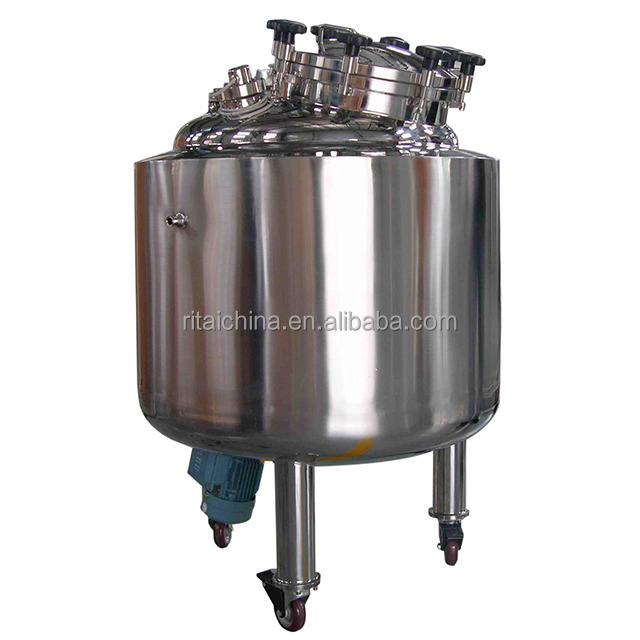

Name: Vaccine Production Plant with Mixing Tanks
Feature:
Feature:equipments are designed and manufactured fully according to the demand of GMP and to standards, such as
steel pressure vessels (GB150-2011), and steel welded atmospheric pressure vessels (JB/T4735-1997), etc.
Application:
It is applied to liquid preparation and various water treatment process in purgative area,such as
infusion solution ,injection solution, eye drop, oral liquid and blood preparation.
Description of oral liquid manufacturing tanks plant:

Product technical description:
Specification: 30L~50000L
Material: SS316L or SS304
Surface finish: inside surface is Ra0.28~0.4μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.
Agitator: Top mechanical agitator (propeller, spiral and anchor or others)
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation
Jacket type: dimple jacket, full jacket, or coil jacket
Insulation material: rock wool
Components: vent filter, temp. gauge, level gauge, manhole, sight glass with lamp and cleaning ball or according to client’s detail requirement.
Manufacture standard for pressure vessel: ASME, PED 97/23/EC, GB150-2011

Packaging & Shipping

Packaging: plywood case

Shipping: by sea or by air

Our Services

We offer design, customization, manufacture, and maintenance services, etc.

Company Information

Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.

Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
