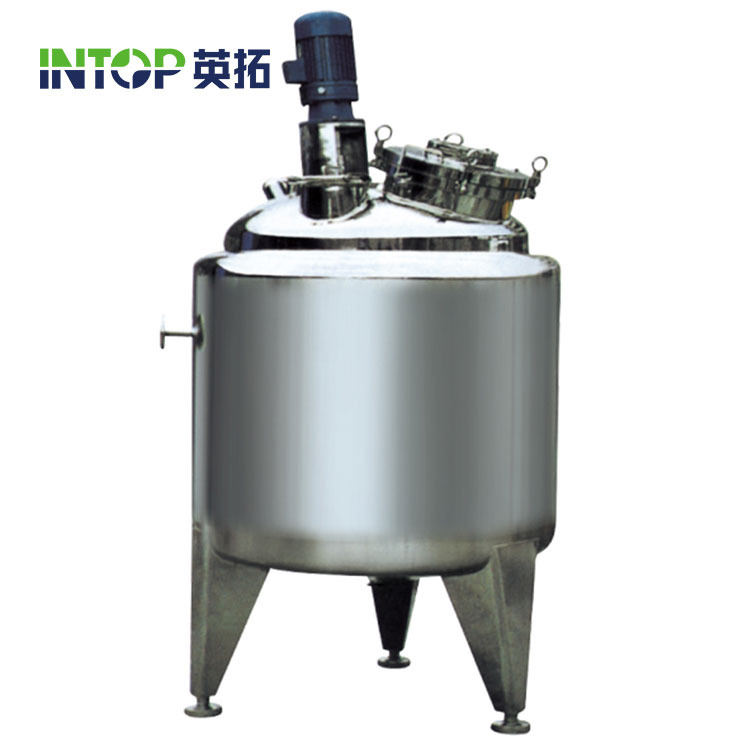

Liquid 500L, 1000L, 2000L Jacket Stainless Steel Chemical Mixing Tank Factory Price

1.0 Sets
MOQ
Liquid 500L, 1000L, 2000L Jacket Stainless Steel Chemical Mixing Tank Factory Price
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Mixer Type: Agitator
Barrel Volume (L): 1000 L
Material Processed: Chemicals, Food, Medicine
Max. Loading Volume (L): 100000 L
Range of Spindle Speed(r.p.m): 36 - 2880 r.p.m
Max. Loading Capacity: 100000
Weight (KG): 1200 KG
Condition: New
Product Type: all liquid need to be mixed
Application: Liquid
Additional Capabilities: Granulating
Voltage: 220V,380V,400V
Dimension(L*W*H): 1000*1000*2050mm
Power (kW): 0.75 kW
Warranty: 1 Year
Key Selling Points: Competitive Price
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
Showroom Location: None
Marketing Type: New Product 2019
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor
Product Name: mixing tank
Volume: 100L-30000L
Material: SUS304/SUS316
Heat Insulation: 100mm
SUS thickness: inner tank 3mm,cladding 2mm
Heating method: Steam
Jacket: Dimple Jacket
Stirrer type: Frame
After-sales Service Provided: Video technical support
Πιστοποίηση: CE,ISO
Βασικές πληροφορίες
Πιστοποίηση: CE,ISO
Πληρωμής & Αποστολής Όροι
Packaging Details: standard export wooden case or as your requirment
Supply Ability: 30 Set/Sets per Month
Περιγραφή προϊόντων
VIDEO DESCRIPTION
RELATED PRODUCTS
CIP cleaning system
Sterilizer
Water treatment

Main Features

1) All the tanks insulation use argon arc welding and inner tank will do passivation or mirror polishing;
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) All the steam heating beer brewery tank will do water and pressure test when finishing. Pressure test is 2-4bar;
PRODUCT SPECIFICATIONS
Warranty Period
1 Year
Voltage
220V, 380V, 400V
Weight
800KG
Processing Object
Alcohol
Certification
CE, ISO
Dimensions (L X W X H)
1600 * 1400 * 2500MM
Power (W)
1.5KW
Volume
100L-30000L
Material
SUS304 / SUS316
Heat Insulation
100mm
SUS Thickness
Inner Tank 3mm, Cladding 2mm
Hopback
Optional
Diverter Panel
Optional

CE Certificate

We steam heating beer brewery beer tank manufacturer have exported lots of 2 vessel beer brewing equipment beer tank to European and many other countries, All the indsutrial beer fermentation tank made by our company are SUS 304/316, and have passed CE, ISO test. We can show you our steam heating beer brewery qualification and certification, to ensure provide the best quality equipment for you.

Our Advantages

1.Mirror Polishing-Inside Polishing: Overall polishing to 0.4μm without dead corner .
-Outside Polishing: Mirror polishing, smooth enough and passivating treatment.
-Purpose: Make sure the steam heating beer brewery inner tank smooth enough to avoid form any dead cornor which caused bad taste in the wort beer. Outer tanks looks more like an artwork.
2.100% WIG Welding
-All welding is TIG welding.
-All welding is Full welding.
-All welding is double side welding.
-Purpose: The use of argon on the protection of metal welding material, So that welding can not be in contact with oxygen in the air, thus preventing the oxidation of welding consumables.Which Makes tanks durable and strong.
3.False bottom/Sieve plate
-Equipped in Lauter tank,Laser milling, Filter gap: 0.8mm
-This filter plate is made on a complete stainless by CNC lathe, it is strong, filter fast and leak no any grist. Which has a good effect in Separating wort and impurities.
