Liquid Emulsifier Storage Agitator Emulsifying Mixer Stirring Storage Reactor Homogenizer Mixing Mixing Tank

1 Set
MOQ
$10,000.00(>=1 Sets)
τιμή
Liquid Emulsifier Storage Agitator Emulsifying Mixer Stirring Storage Reactor Homogenizer Mixing Mixing Tank
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Mixer Type: Homogenizer
Barrel Volume (L): 100 L
Material Processed: Chemicals, Food, Medicine
Max. Loading Volume (L): 1000 L
Range of Spindle Speed(r.p.m): 1 - 3000 r.p.m
Max. Loading Capacity: 1000L
Weight (KG): 1500 KG
Material: SUS304, SUS316
Condition: New
Product Type: Paint
Application: Liquid
Additional Capabilities: homogenizer
Voltage: Customized
Dimension(L*W*H): Customized
Power (kW): 100 kW
Warranty: 1 Year
Key Selling Points: Automatic
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Energy & Mining, Advertising Company
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Pressure vessel, PLC, Bearing
Function: Mixing Raw Material
Application scope: Chemical Cosmetic Food Pharmacy
Heating method: Steam Electric Gas Heating
Homogenizer: Frequency Inverter
After-sales Service Provided: Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Πιστοποίηση: CE
Βασικές πληροφορίες
Πιστοποίηση: CE
Πληρωμής & Αποστολής Όροι
Packaging Details: Wooden packing
Supply Ability: 100 Set/Sets per Month
Περιγραφή προϊόντων
Products Description

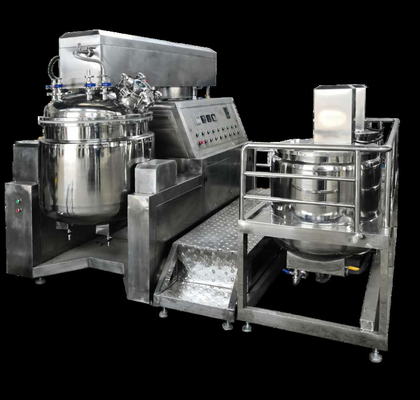

Vacuum emulsifying machine
The unit is composed of vacuum homogenizing emulsifier, heating system, mixing system, vacuum system, hydraulic lifting system, operation control cabinet and pipeline system. It is the most suitable cream equipment for the production of high-grade skin care products or products.
The homogenizer is made of advanced German technology with unique structure. The materials move at high speed in the gap between multi-layer rotor and stator, forming strong hydraulic shear and dispersing materials. At the same time, it produces comprehensive forces such as centrifugal extrusion, grinding and collision, and finally makes the materials fully mixed, stirred and refined to meet the ideal requirements


Operation video
Details Images

High speed homogenizing head

Built in mechanical seal, no dead corner

Safety valve

The lid is equipped with various safety valves and filters

Mixing and homogenization

Variable frequency speed regulation and high speed homogenization of mixing
Model
Mixing Power /
Mixng Speeed
Homogeneous Power /
Homogeneous
Speed
Oil and water
Mixing Power /
Speed
Size/Weight
ZJR-5/10L
370W / 550W
0-120 rpm
550W/
0-3000 rpm
90W/
0-200rpm
1100*600*1500mm
250KG
ZJR-30L
550W / 750W
0-120 rpm
1.5KW/
0-3000 rpm
180W/
0-200rpm
1100*600*1500mm
450KG
ZJR-50L
1.1KW
0-120 rpm
2.2KW/
0-3000 rpm
370W/
1400rpm
1500*600*1900mm
(2400mm Lifting height)
800KG
ZJR-100L
1.5KW
0-120 rpm
3KW/0-3000 rpm
550 W/1400rpm
2200*600*2100mm
(2900mm Lifting height)
1200KG
ZJR-150L
1.5KW
0-120 rpm
4KW/0-3000 rpm
550W/1400rpm
2200*600*2300mm
(3000mm Lifting height)
1300KG
ZJR-250L
2.2KW
0-120 rpm
5.5KW/0-3000 rpm
750W/1400rpm
2400*1400*2200mm
(3000mm Lifting height)
1600KG
ZJR-350L
3KW
0-120 rpm
7.5KW/0-3000 rpm
1.1KW/1400rpm
2400*1400*2200mm
(3300mm Lifting height)
1800KG
ZJR-650L
4KW
0-120 rpm
11KW/0-3000 rpm
1.5KW/1400rpm
26*1600*2200mm
(3300mm Lifting height)
2000KG
ZJR-1000L
5.5KW
0-120 rpm
15KW/0-3000 rpm
2.2KW/1400rpm
3000*2700*3300mm
(4700mm Lifting height)
2500KG
ZJR-2000L
7.5KW
0-120 rpm
22KW/0-3000 rpm
3KW/1400rpm
3500*3000*3500mm
(4900mm Lifting height)
3500KG
ZJR-5000L
11KW
0-120 rpm
37KW/0-3000 rpm
4KW/1400rpm
Customized platform
