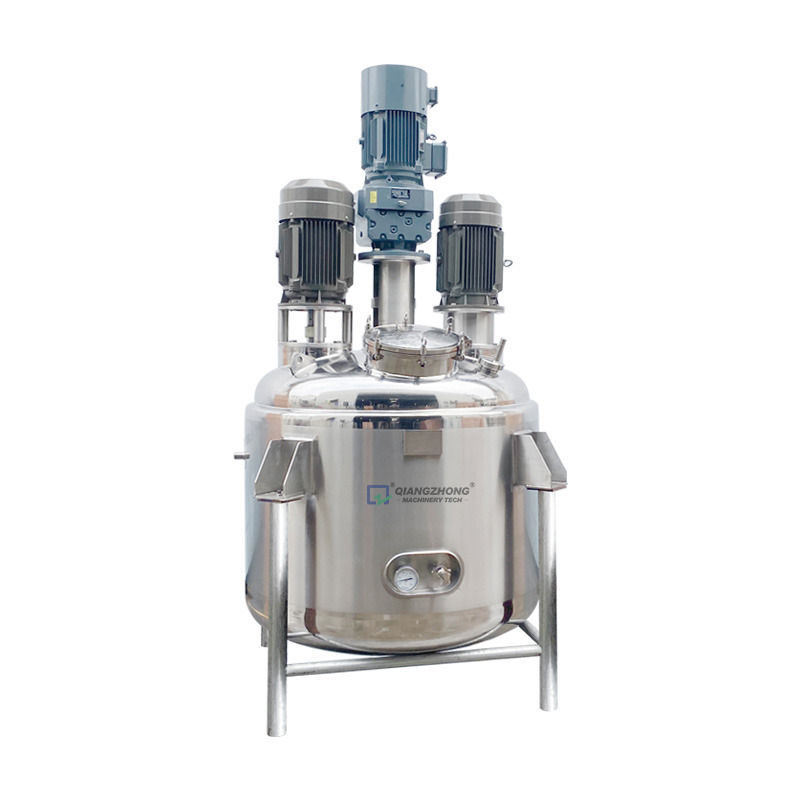

High Shear Liquid Emulsifier Industrial Homogenizer Stainless Steel Vacuum Mixing Tank

1.0 Sets
MOQ
High Shear Liquid Emulsifier Industrial Homogenizer Stainless Steel Vacuum Mixing Tank
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Mixer Type: Agitator
Barrel Volume (L): 1000
Material Processed: Chemicals, Food, Medicine
Max. Loading Volume (L): 5000 L
Range of Spindle Speed(r.p.m): 1 - 2900 r.p.m
Max. Loading Capacity: 5000L
Weight (KG): 500 KG
Material: SUS304, SUS304L, SUS316, SUS316L, stainless steel
Condition: New
Product Type: Paint
Application: Liquid, viscous fluid
Additional Capabilities: emulsifier homogenizer mixer tank
Voltage: 110V, 200V, 220V, 230V, 380V, 400V
Dimension(L*W*H): Customized
Power (kW): 11 kW
Warranty: 1 Year
Key Selling Points: Sanitary food grade
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Pharmaceutical factory, Daily chemical industry
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Pressure vessel, heated, Stirrer
Stirring form: High shear mixer, blending, emulsifier, homogenizer
Stirrer installation method: Bottom, Straight top, Side entry
Heating Method: Electric heating / Steam heating
Alias: mixer tank machine, high shear emulsifier tank, reactor
shape: Cone bottom, conical, open top,
Daily chemical industry: Shampoo, Hand Sanitizer, Toothpaste, Ointment, Lotion, liquid soap
Chemical industry: Alcohol, Plant, Fertilizer, Perfume, Grease, Resin, detergent,
Food and beverage industry: Fruit Juice, Beverage, Syrup, Ketchup, Tomato Paste Sauce, Ice Cream,
Other industrial applications: yogurt, milk, pulp, jam, brine, oil, dishwashing
After-sales Service Provided: Online support, Video technical support
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile
Πιστοποίηση: Certified by SGS / TUV / CE / ISO 9001
Βασικές πληροφορίες
Πιστοποίηση: Certified by SGS / TUV / CE / ISO 9001
Πληρωμής & Αποστολής Όροι
Packaging Details: We are experienced in the whole packing and shipping process,and we will be responsible for any damage made during shipping and send clients replacements for free. * Sufficient inner protection with different materials, including bubble bag, foam board and
Supply Ability: 20 Set/Sets per Month
Περιγραφή προϊόντων
Products Description
This tank is capable of distributing one or more phases to another continuous phase efficiently, quickly and uniformly, in which case the phases are mutually insoluble. Due to the high tangential speed and high-frequency mechanical effects generated by the high-speed rotation of the rotor, the material is subjected to strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction and impact in the narrow gap between the stator and the rotor. A combination of tearing and turbulence. Therefore, the incompatible solid phase, the liquid phase, and the gas phase are uniformly and finely dispersed and emulsified under the action of the corresponding mature process and an appropriate amount of additives, and the high-frequency cycle reciprocates to finally obtain a stable high-quality product.
●The mixing tank mainly consists of tank body, cover, agitator, supporting feet, transmission device, shaft seal device, etc. ●Tank body, cover, agitator and shaft seal can be made of carbon steel, stainless steel or other materials according to specific requirements. ●The tank body and the cover can be connected by flange seal or welding. Also they could be with ports for purpose of feeding, discharging, observation, temperature measurement, pressure measurement, steam fractionation, safety vent, etc. ●The transmission device (a motor or a reducer) is installed on top of the cover, and it can drive the agitator inside the tank is by stirring shaft. ●The shaft seal can be used mechanical seal, packing seal or labyrinth seal as requested. ●The agitator type could be impeller, anchor, frame, spiral type, etc. according to the requirements of different application.
For your Detailed description and drawings, please send us inquiry and request!
Details Images
For more customized products, please send us inquiry and reques
Why Choose Us
Certification
25 National Patents, Audited by SGS/TUV/CE/ISO9001
Quality Guarantee
Complaint rate as low as 5‰ for 15 years. If you decide to purchase from us, any malfunction happened, once you enquiry us, we will reply you solution within 48 hours except the special reasons
Short Lead Time
Lead time is flexible. Short turnaround of replacement parts made by substantial storage, Normally we are 20% faster than others. If you have urgent orders, pls feel free to contact us. We will get the job done with 100% satisfaction.
24/7 Available
All your inquiry will be responded within 1 hour. All your quotation will be satisfied within 12 hours.
Why choose us？
•100% manufacturer
• Rich production experience
•Strict Quality Control System
•Flexible MOQ
•Punctual delivery
•Excellent and Experienced Team
Company Profile

Wenzhou Qiangzhong Machinery Technology Co., Ltd. is a professional manufacturer of processing machines, located in Wenzhou City, China, near Longwan International Airport. Our main products include the high shear mixer, mixing tank, colloid mill, sanitary pump, sanitary filter, sanitary pipe, and valve. They are widely used in industries such as brewery, dairy product, beverage, chemicals, cosmetics, pharmaceuticals, and biopharmaceuticals.

We offer complete sets of service from research and development, production, sales, after -sales to maintenance, in accord withGMP, QS, and HACCP. As a pioneer and innovator, Obtain 25 National Patents, Audited by SGS / TUV / CE / ISO9001.
Customer Photos

Thanks to advanced technologies and production equipment, strict meeting industry standards, our quality is well-developedcontinuously. So far, our products have been sold not only all around China but also globally, such as Europe, America, Australia, Southeast Asia, Middle East, etc.
For our clients' feedback videos, please send us inquiry and request!
Packaging & Shipping

We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and send clients replacements for free. * Sufficient inner protection with different materials, including bubble bag, foam board and others. * Qualified wooden package or carton for different products or as customer require.
